Outdoor microphones

Nor1216 Outdoor microphone

Read more Show Details
Outdoor microphones

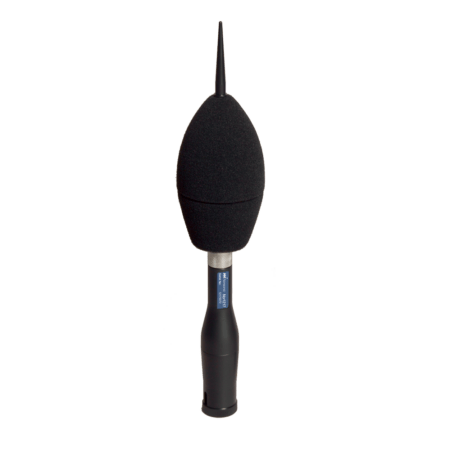

Nor1217 Outdoor microphone

Read more Show Details
Outdoor microphones

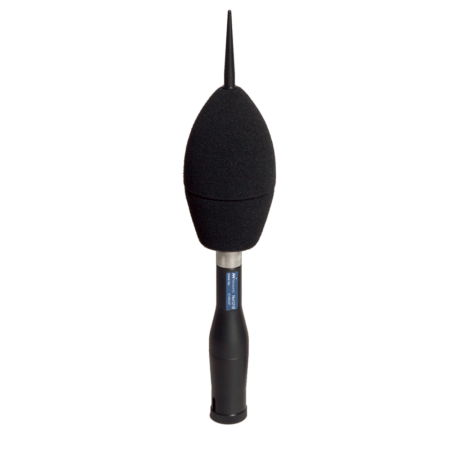

Nor1218 Outdoor microphone

Read more Show Details
Outdoor microphones

Nor1297 Noise compass

Read more Show Details

Acoustic camera
Adaptors
Calibrators
Cases and softbags
Environmental monitoring
Interface cables and adaptors
Mains power adaptor
Microphone cables and accessories
Microphone windscreens
Microphones/preamplifiers
Noise sources
Outdoor microphones
Software
Sound level meters
Test systems
Tripods and stands
Uncategorized
Uncategorized
Various accessories
Vibration

Features

text

Fulfils IEC 60651, IEC 61672 class 1 and ANSI S1.4 type 1 (frequency correction applied).
Protection class IP 55 (dust and water).
Easy to calibrate with a normal ½” sound calibrator.
Microphone verification by SysCheck facility.
Low self noise – typically below 17 dB, A-weighted.
Delivered with individually calibration certification.
Built in heating for enhanced weather protection.
Directly powered and supported by Nor140, Nor145 and Nor150 (built in selectable frequency correction networks, heater supply and SysCheck signal generator).
Type approved by PTB, Germany.

Standards

text

IEC 60651
IEC 61672
ANSI S1.4

Specifications

text

Acoustic performance: IEC 60651, IEC 61672 class 1 and ANSI S1.4 type 1 (frequency correction applied) with a suitable instrument (Nor140/Nor150).
Max sound pressure level: >140 dB peak dependent on supply voltage.
Microphone cartridge: Nor1227 or Nor1225 (1/2” 50 mV/Pa)
Polarization voltage: 0 volt (Nor1227) 200V (Nor1225)
Inherent noise: < 17 dB A-weighted
Reference direction: Vertical or horizontal dependent on the applied frequency correction
Ingress Protection Category: IP55 according to IEC 60529.
Supply voltage: ±14 volt to ±16 volt
Current consumption: 18mA incl. heating.
Connector: 7 pin Lemo type 1B male
Temperature range: -40ºC to +85ºC
Height: 375 mm / 14.8”(1” pipe mounting), 450 mm / 17,7” with tripod adaptor
Diameter: Approx 80 mm / 3.1” (with windshield)
Weight: Approx 300 g (with preamp microphone)
Mounting thread: Standard 1” pipe threads according to ISO 228. When using the tripod adapter: 3/8” UNC.

Downloads

text

Brochurer

Product range catalogue

Product range catalogue - English -
Norsonic_productrange_2024-2025.pdf (0.01GB)

Released

Download
Catálogo de productos - Español -
Norsonic_product_catalogue_Spanish.pdf (0.01GB)

Released

Download

Technical note

Nor4576 additional large windscreen for Nor1216 / Nor1217 / Nor1218

Nor4576 Additional large windscreen for Nor1216 / Nor1217 / Nor1218 -
TN-Nor4576-large-windscreen-March-2024.pdf (523.99KB)

Released

Download
